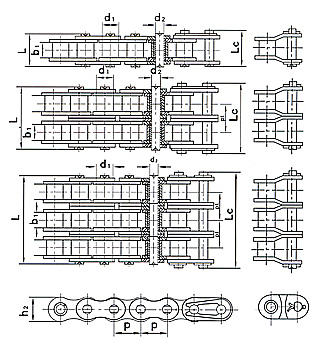

Heavy series roller chains
DIN ISO
ANSI

Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin lenth
Inner plate depth
Weight permeter
Transverse
DIN ISO
China NO.
ANSI
China NO.
P
d1max
b1min
d2max
Lmax
Lcmax
h2max
q
pt
mm
mm
mm
mm
mm
mm
mm
kg/m
mm
10AH-1
50H
15.875
10.16
9.40
5.08
22.1
23.4
15.09
1.25
12AH-1
60H
19.05
11.91
12.57
5.94
29.2
31.0
18.00
1.87
16AH-1
80H
25.4
15.88
15.75
7.92
36.2
37.7
24.00
3.10
20AH-1
100H
31.75
19.05
18.90
9.53
43.6
46.9
30.00
4.52
24AH-1
120H
38.1
22.23
25.22
11.10
53.5
57.5
35.70
6.60
28AH-1
140H
44.45
25.40
25.22
12.70
57.6
62.2
41.00
8.30
32AH-1
160H
50.8
28.58
31.55
14.27
68.2
73.0
47.80
10.30
12AH-2
60H-2
19.05
11.91
12.57
5.94
55.3
57.1
18.00
13.71
26.11
16AH-2
80H-2
25.4
15.88
15.75
7.92
68.8
70.3
24.00
6.15
2.59
20AH-2
100H-2
31.75
19.05
18.90
9.53
82.7
86.0
30.00
9.03
39.09
24AH-2
120H-2
38.1
22.2
25.22
11.10
102.4
106.4
35.70
13.13
48.87
28AH-2
140H-2
44.45
25.40
25.22
12.70
109.8
114.4
41.00
16.60
52.20
32AH-2
160H-2
50.8
28.58
31.55
14.27
130.1
134.9
47.80
20.20
61.90
12AH-3
60H-3
19.05
11.91
12.57
5.94
81.4
83.2
18.00
5.54
26.11
16AH-3
80H-3
25.4
15.88
15.75
7.92
101.4
102.9
24.00
9.42
32.59
20AH-3
100H-3
31.75
19.05
18.90
9.53
121.8
125.1
30.00
12.96
39.09
24AH-3
120H-3
38.1
22.23
25.22
11.10
151.2
155.2
35.70
19.64
48.87
28AH-3
140H-3
44.45
25.40
25.22
12.70
162.0
166.6
41.00
24.90
52.20
32AH-3
160H-3
50.8
28.58
31.55
14.27
192.0
196.8
47.80
30.10
61.90
